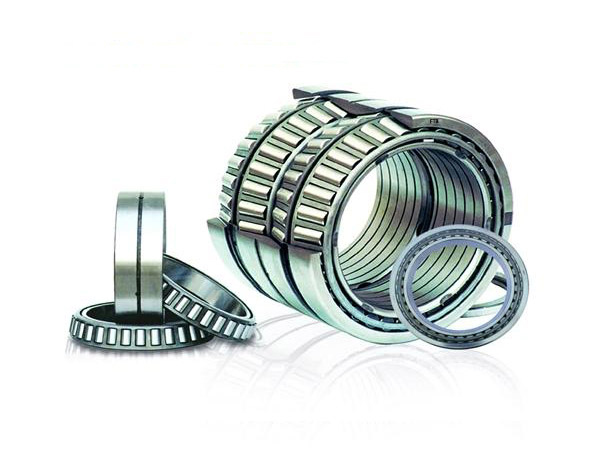

Metric taper (four column)
| Metric taper (four column) |
|
商品詳細介紹：
公制圓錐(四列)： 圓錐滾子軸承主要用以承受以徑向載荷為主的徑向與軸向聯合載荷。外圈可分離，組裝容易。在安裝和使用過程中可以調節軸向游隙與徑向游隙，可以預過盈安裝。 |
|
| 軸承型號 |
基本尺寸 |
基本額定載荷(kN) |
重量 |
| dxDxT |
動(Cr) |
靜(Cor) |
| 380644 |
220x320x200 |
1730 |
4000 |
55 |
| 382044 |
220x340x305 |
2800 |
5950 |
99.5 |
| 380648 |
240x338x248 |
2030 |
5400 |
69 |
| 382048X2 |
240x360x310 |
3630 |
2210 |
90.5 |
| 380650 |
250x460x270 |
2470 |
6400 |
192 |
| 382952 |
260x360x265 |
1900 |
5050 |
77.8 |
| 380652 |
260x400x255 |
1630 |
4950 |
117 |
| 382052 |
260x400x345 |
3130 |
7700 |
161 |
| 382152X2 |
260x440x300 |
2940 |
5850 |
182 |
| 380656 |
280x420x250 |
1690 |
5300 |
119 |
| 381156 |
280x460x324 |
3680 |
8350 |
219 |
| 382960 |
300x420x300 |
2750 |
7500 |
125 |
| 382160 |
300x460x390 |
4230 |
10200 |
222 |
| 380660 |
300x500x350 |
3000 |
8900 |
280 |
| 382064X2 |
320x480x380 |
3300 |
11500 |
252 |
| 382968X2 |
340x460x310 |
3300 |
8950 |
146 |
| 381068 |
340x520x325 |
3520 |
8200 |
247 |
| 381168 |
340x580x425 |
5550 |
12300 |
468 |
| 380671 |
355x490x316 |
4100 |
10900 |
186 |
| 3806/355.6 |
355.6x482.6x265.114 |
2570 |
7440 |
139 |
| 382972X2/YA3 |
360x480x375 |
2800 |
11800 |
197 |
| 380672 |
360x510x380 |
5500 |
14200 |
256 |
| 381072X2 |
360x540x280 |
4300 |
8800 |
231 |
| 381172 |
360x600x420 |
4340 |
13500 |
388 |
| 380676/-1 |
380x550x330 |
2740 |
9450 |
273 |
| 381076 |
380x560x325 |
4810 |
10000 |
263 |
| 381076X2 |
380x560x360 |
6000 |
13500 |
296 |
| 380676 |
380x620x388 |
3800 |
11600 |
443 |
| 381176 |
380x620x420 |
5550 |
12600 |
485 |
| 380679X2 |
395x545x268.7 |
2340 |
6500 |
194 |
| 380680-1 |
400x540x280 |
2690 |
6500 |
187 |
| 380680 |
400x540x400 |
6980 |
13300 |
262 |
| 381080 |
400x600x356 |
3740 |
12400 |
345 |
| 380684 |
420x560x437 |
7900 |
16300 |
298 |
| 381084 |
420x620x356 |
4560 |
11700 |
369 |
| 381184 |
420x700x480 |
10500 |
11900 |
755 |
| 380688 |
440x620x454 |
6650 |
18800 |
432 |
| 380688 X2/HC(77788） |
440 x650 x355 |
5900 |
12700 |
410 |
| 381088X2 |
440x650x355 |
5000 |
12300 |
402 |
| 380690-1 |
450x580x450 |
6000 |
19300 |
282 |
| 381992X3 |
460x610x360 |
6100 |
16400 |
291 |
| 380692-1 |
460x610x400 |
6000 |
17000 |
316 |
| 381992 |
460x620x310 |
6160 |
3450 |
260 |
| 380692-1 |
460x625x421 |
7050 |
19800 |
382 |
| 381096 |
480x700x420 |
4730 |
16900 |
582 |
| 380698 |
490x625x385 |
5390 |
16500 |
278 |
| 3810/500X2 |
500x720x400 |
7500 |
18600 |
542 |
| 3810/530 |
530x780x450 |
7200 |
18200 |
745 |
| 3819/560 |
560x750x368 |
8630 |
15800 |
447 |
| 3811/560 |
560x920x620 |
20000 |
32000 |
1690 |
| 3806/600（779/600） |
600x800x365 |
4400 |
18100 |
489 |
| 3819/600 |
600x800x380 |
4400 |
18100 |
497 |
| 3810/600 |
600x870x480 |
6760 |
25500 |
992 |
| 3811/600 |
600x980x650 |
10600 |
37500 |
1970 |
| 3819/630 |
630x850x418 |
5500 |
22100 |
682 |
| 3810/630 |
630x920x515 |
7200 |
27500 |
1190 |
| 3811/630 |
630x1030x670 |
16500 |
42000 |
2200 |
| 3806/650-1 |
650x915x674 |
15700 |
44800 |
1433 |
| 3806/650 |
650x1030x560 |
17600 |
39300 |
1720 |
| 3819/670 |
670x900x412 |
5770 |
24600 |
773 |
| 3806/710 |
710x900x410 |
5880 |
27500 |
650 |
| 3806/750 |
750x950x410 |
9560 |
27780 |
703 |
| 3811/750 |
750x1220x840 |
17700 |
68500 |
3985 | |
|
|
