深溝球軸承

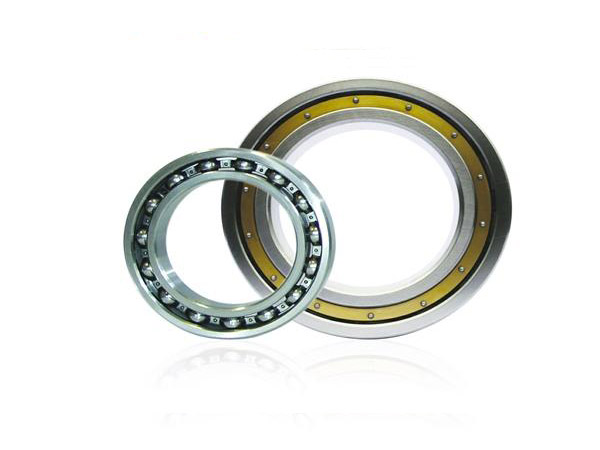

深溝球軸承 |
|
商品詳細介紹: 深溝球軸承主要承受徑向載荷,也可承受一定量的軸向載荷。該類軸承摩擦系數小,極限轉速高,尺寸范圍與形式變化多樣。適用于精密儀表、低噪音電機、汽車、摩托車及一般機械等,是機械工業中使用最為廣泛的一類軸承。 |
軸承型號 |
基本尺寸 |
基本額定載荷(kN) |
極限轉速 |
重量 |

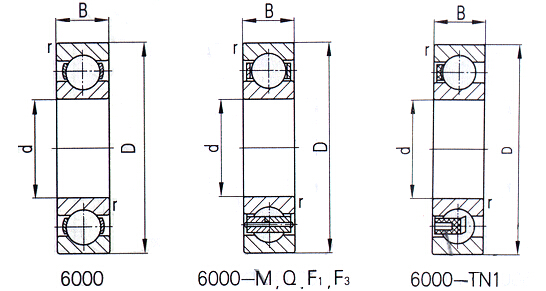

dxDxB |
動(Cr) |
靜(Cor) |
脂潤滑 |
油潤滑 |
61920M |
100x140x20 |
34.5 |
35.0 |
4500 |
5300 |
0.960 |
61920 |
100x140x20 |
34.5 |
35.0 |
4500 |
5300 |
0.850 |
6020 |
100x150x24 |
56.5 |
48.0 |
4300 |
5000 |
1.17 |
6020M |
100x150x24 |
48.0 |
56.5 |
4300 |
5000 |
1.40 |
720 |
100x180x28 |
89.0 |
92.0 |
3400 |
4000 |
2.70 |
6220 |
100x180x34 |
94.0 |
93.0 |
3400 |
4000 |
3.20 |
6320 |
100x215x47 |
141 |
133 |
2800 |
3600 |
7.01 |
6320/YA8 |
100x215x47 |
141 |
133 |
2800 |
3600 |
7.11 |
6420 |
100x250x58 |
224 |
195 |
2600 |
3400 |
12.8 |
6420M |
100x250x58 |
224 |
195 |
2600 |
3400 |
15.4 |
6021 |
105x160x26 |
72.8 |
65.5 |
4000 |
4800 |
1.62 |
6021M |
105x160x26 |
72.8 |
65.5 |
4000 |
4800 |
1.92 |
721 |
105x180x22 |
52.0 |
65.0 |
4200 |
5000 |
2.61 |
6221 |
105x190x36 |
102 |
105 |
3200 |
3800 |
3.66 |
6321 |
105x225x49 |
184 |
153 |
2800 |
3400 |
7.84 |
61822 |
110x140x16 |
19.0 |
28.0 |
4300 |
5000 |
0.505 |
61922 |
110x150x20 |
43.5 |
44.5 |
4000 |
4800 |
0.888 |
16022 |
110x170x19 |
57.2 |
57.0 |
3800 |
4500 |
1.48 |
6022 |
110x170x28 |
82.0 |
73.5 |
3800 |
4500 |
2.09 |
6022M |
110x170x28 |
82.0 |
73.5 |
3800 |
4500 |
2.72 |
6222 |
110x200x38 |
102 |
106 |
2800 |
3400 |
4.29 |
6222M |
110x200x38 |
102 |
106 |
2800 |
3400 |
5.46 |
6322 |
110x240x50 |
158 |
176 |
2400 |
3000 |
9.49 |
6422 |
110x280x65 |
267 |
226 |
2200 |
3000 |
18.3 |
6422M |
110x280x65 |
267 |
226 |
2200 |
3000 |
19.0 |
61824 |
120x150x16 |
19.0 |
28.0 |
3800 |
4500 |
0.568 |
61924M |
120x165x22 |
41.0 |
54.0 |
3600 |
4300 |
1.54 |
1624 |
120x180x19 |
60.5 |
64.0 |
3400 |
4000 |
1.64 |
16024M |
120x180x19 |
60.5 |
64.0 |
3400 |
4000 |
0.82 |
6024 |
120x180x28 |
68.0 |
79.5 |
3400 |
4000 |
2.21 |
6024M |
120x180x28 |
85.2 |
80.0 |
3400 |
4000 |
2.68 |
6224 |
120x215x40 |
120 |
131 |
2800 |
3400 |
5.26 |
6224M |
120x215x40 |
120 |
131 |
2800 |
3400 |
6.33 |
6324 |
120x260x55 |
175 |
207 |
2200 |
2800 |
12.20 |
61926M |
130x180x24 |
65.0 |
67.0 |
3400 |
4000 |
1.92 |
61926 |
130x180x24 |
65.0 |
67.0 |
3400 |
4000 |
1.56 |
726 |
130x190x19 |
43.0 |
60.0 |
3200 |
3800 |
1.70 |
726H |
130x190x19 |
43.0 |
60.0 |
3200 |
3800 |
1.91 |
16026M |
130x200x22 |
79.5 |
81.5 |
3200 |
3800 |
2.32 |
16026 |
130x200x22 |
79.5 |
81.5 |
3200 |
3800 |
2.19 |
6026 |
130x200x33 |
78.0 |
94.0 |
3200 |
3800 |
3.29 |
6026M |
130x200x33 |
78.0 |
94.0 |
3200 |
3800 |
3.96 |
6226 |
130x230x40 |
127 |
148 |
2600 |
3200 |
6.04 |
6326 |
130x280x58 |
193 |
239 |
2200 |
2600 |
14.7 |
6326M |
130x280x58 |
230 |
216 |
2200 |
2600 |
18.3 |
61828M |
140x175x18 |
26.0 |
40.0 |
3400 |
4000 |
0.930 |
16028M |
140x210x22 |
80.5 |
86.5 |
3000 |
3600 |
3.08 |
6028 |
140x210x33 |
81.0 |
102 |
3000 |
3600 |
3.25 |
6028M |
140x210x33 |
81.0 |
102 |
3000 |
3600 |
3.24 |
6228 |
140x250x42 |
128 |
150 |
2400 |
3000 |
7.41 |
6228M |
140x250x42 |
128 |
150 |
2400 |
3000 |
9.44 |
6328 |
140x300x62 |
253 |
246 |
2000 |
2600 |
18.5 |
6328M |
140x300x62 |
253 |
246 |
2000 |
2600 |
21.3 |
928 |
144x185x22 |
48.0 |
67.0 |
3600 |
4000 |
1.07 |
930 |
149x201x33 |
81.0 |
102 |
3000 |
3600 |
1.79 |
16030M |
150x225x24 |
70.0 |
98.5 |
2600 |
3200 |
3.63 |
6030 |
150x225x35 |
101 |
125 |
2600 |
3200 |
4.14 |
6030M |
150x225x35 |
101 |
125 |
2600 |
3200 |
5.01 |
6230 |
150x270x45 |
156 |
198 |
2000 |
2600 |
9.76 |
6230M |
150x270x45 |
156 |
198 |
2000 |
2600 |
11.8 |
6330 |
150x320x65 |
277 |
280 |
1800 |
2200 |
21.4 |
6330M |
150x320x65 |
277 |
280 |
1800 |
2200 |
26.0 |
16032M |
160x240x25 |
72.0 |
104 |
2400 |
3000 |
4.61 |
6032 |
160x240x38 |
110 |
138 |
2400 |
3000 |
5.63 |
6032M |
160x240x38 |
110 |
138 |
2400 |
3000 |
6.41 |
6232 |
160x290x48 |
166 |
218 |
1900 |
2400 |
12.3 |
6232M |
160x290x48 |
166 |
218 |
1900 |
2400 |
14.4 |
6332 |
160x340x68 |
238 |
327 |
1800 |
2200 |
31.3 |
733 |
165x250.5x35 |
113.0 |
143 |
2200 |
2600 |
6.44 |
61834M |
170x215x22 |
50.0 |
61.0 |
2600 |
3200 |
1.87 |
61934M |
170x230x28 |
89.0 |
100 |
2400 |
3000 |
5.19 |
16034M |
170x260x28 |
119 |
129 |
2200 |
2800 |
5.83 |
6034M |
170x260x28 |
131 |
171 |
2200 |
2800 |
8.23 |
6034 |
170x260x28 |
131 |
171 |
2200 |
2800 |
6.78 |
6234 |
170x310x52 |
186 |
256 |
1900 |
2400 |
15.2 |
6234M |
170x310x52 |
186 |
256 |
1900 |
2400 |
18.4 |
6334 |
170x360x72 |
350 |
380 |
1700 |
2000 |
30.9 |
6334M |
170x360x72 |
350 |
380 |
1700 |
2000 |
34.9 |
61936M |
180x250x33 |
98.0 |
137 |
2200 |
2800 |
5.27 |
63936X1M |
180x259.5x52 |
98.0 |
137 |
2200 |
2800 |
8.87 |
6036 |
180x280x46 |
173 |
202 |
2200 |
2600 |
8.83 |
6036M |
180x280x46 |
173 |
202 |
2200 |
2600 |
10.7 |
6236 |
180x320x52 |
202 |
287 |
1800 |
2600 |
15.4 |
6236M |
180x320x52 |
202 |
287 |
1800 |
2600 |
17.8 |
61838M |
190x240x24 |
48.5 |
83.5 |
2200 |
2800 |
2.38 |
61938M |
190x260x33 |
127 |
138 |
2200 |
2800 |
5.85 |
61938X1M |
190x269.5x33 |
127 |
138 |
2200 |
2800 |
6.87 |
16038M |
190x290x31 |
135 |
155 |
2000 |
2600 |
8.11 |
6038M |
190x290x46 |
180 |
204 |
2000 |
2600 |
11.1 |
6038 |
190x290x46 |
180 |
204 |
2000 |
2600 |
9.58 |
6238 |
190x340x55 |
218 |
321 |
1700 |
2000 |
18.9 |
6238M |
190x340x55 |
218 |
321 |
1700 |
2000 |
23.2 |
16040M |
200x310x34 |
121 |
179 |
1900 |
2400 |
10.3 |
6040M |
200x310x51 |
171 |
245 |
1900 |
2400 |
14.3 |
6040 |
200x310x51 |
171 |
245 |
1900 |
2400 |
11.7 |
6240 | ,
200x360x58 |
222 |
332 |
1700 |
2000 |
22.6 |
6240M |
200x360x58 |
222 |
332 |
1700 |
2000 |
24.4 |
61944M |
220x300x38 |
136 |
162 |
1900 |
2400 |
7.96 |
61944X1M |
220x309.5x38 |
136 |
162 |
1900 |
2400 |
9.30 |
6044 |
220x340x56 |
245 |
293 |
1800 |
2200 |
15.6 |
6044M |
220x340x56 |
245 |
293 |
1800 |
2200 |
18.8 |
6244 |
220x400x65 |
229 |
365 |
1500 |
1800 |
31.2 |
6646M |
230x329.5x40 |
147 |
227 |
1600 |
2000 |
10.4 |
61948M |
240x320x38 |
119 |
186 |
1800 |
2200 |
8.10 |
6048M |
240x360x56 |
255 |
315 |
1700 |
2000 |
20.7 |
6048X1M |
240x359.5x56 |
255 |
315 |
1700 |
2000 |
20.7 |
6248 |
240x440x72 |
277 |
470 |
1300 |
1600 |
51.8 |
61852M |
260x320x28 |
94.0 |
128 |
1700 |
2000 |
4.85 |
61952M |
260x360x46 |
163 |
269 |
1600 |
1900 |
14.4 |
752 |
260x370x46 |
163 |
269 |
1600 |
1900 |
16.5 |
62952X1M |
260x369.5x60 |
175 |
288 |
1600 |
1900 |
20.3 |
6052M |
260x400x65 |
294 |
375 |
1500 |
1800 |
28.8 |
61956M |
280x380x46 |
165 |
282 |
1500 |
1800 |
15.6 |
61956X1M |
280x390x46 |
165 |
282 |
1500 |
1800 |
17.6 |
6056 |
280x420x65 |
305 |
405 |
1400 |
1700 |
32.2 |
61960X1 |
300x419.5x56 |
205 |
370 |
1400 |
1700 |
20.6 |
61960 |
300x420x56 |
205 |
370 |
1300 |
1600 |
20.7 |
16060 |
300x460x50 |
260 |
400 |
1200 |
1500 |
33.1 |
6060 |
300x460x74 |
280 |
476 |
1200 |
1500 |
48.4 |
6064 |
320x480x74 |
265 |
510 |
1100 |
1400 |
50.3 |
61864F3 |
320x400x38 |
121 |
220 |
1300 |
1600 |
11.1 |
864 |
320x412x38 |
164 |
292 |
1300 |
1600 |
12.7 |
61964 |
320x440x56 |
214 |
395 |
1300 |
1600 |
24.9 |
61968 |
340x460x56 |
282 |
420 |
1100 |
1400 |
27.0 |
61872 |
360x440x38 |
126 |
242 |
1100 |
1400 |
12.2 |
6072F3 |
360x540x82 |
310 |
620 |
1000 |
1300 |
64.7 |
61876F3 |
380x480x46 |
214 |
314 |
1000 |
1300 |
19.0 |
61976 |
380x520x65 |
266 |
550 |
1000 |
1300 |
39.8 |
61980F3 |
400x540x65 |
273 |
582 |
950 |
1200 |
39.4 |
6080 |
400x600x90 |
370 |
780 |
900 |
1100 |
86.5 |
61984F3 |
420x560x65 |
247 |
395 |
900 |
1100 |
41.9 |
61988F3 |
440x600x74 |
292 |
648 |
900 |
1100 |
60.5 |
6088 |
440x650x94 |
390 |
880 |
850 |
1000 |
108 |
61992F3 |
460x620x74 |
299 |
678 |
850 |
1000 |
63.0 |
619/500X3 |
500x660x75 |
304 |
716 |
750 |
900 |
68.8 |
60/500 |
500x720x100 |
415 |
1020 |
750 |
900 |
135 |
60/560 |
560x820x115 |
600 |
1500 |
630 |
750 |
208 |
160/800X2F3 |
800x1150x115 |
650 |
2080 |
500 |
550 |
427 |
618/850 |
850x1030x82 |
428 |
1303 |
450 |
530 |
144 |
618/1000F3 |
1000x1220x100 |
525 |
1720 |
340 |
400 |
230 |
618/1180F3 |
1180x1420x106 |
710 |
2580 |
320 |
360 |
310 |
618/1240X1 |
1240x1480x112 |
715 |
2660 |
300 |
340 |
356 |
|
|
|
